CoreLine Value højloftslampe 187W 25500 lumen 4000K IP65

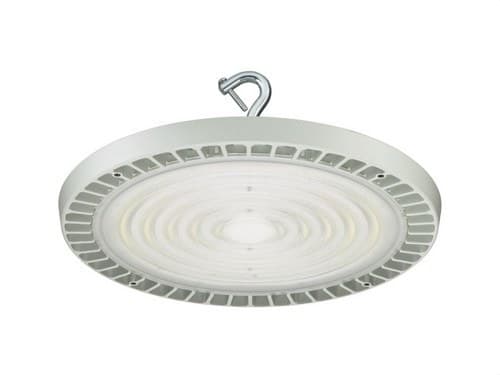

Philips CoreLine Value BY102P LED260S/840 PSU WB high-bay lamp, reference 52922900, is a professional high-bay luminaire designed to illuminate industrial halls, warehouses, logistics centres, production areas and other spaces with high ceilings. It offers a power of 187 W, a luminous flux of 26,000 lm and a high efficacy of 139 lm/W, with neutral white light of 4000 K and a wide beam distribution of 90°.

Its die-cast aluminium housing, IP65 protection against dust and water jets, and IK06 mechanical resistance provide a construction ready for demanding professional environments. The luminaire incorporates an LED light source and On/Off driver, a 3-pole external connection and a 0.3 m cable, making installation easier in industrial and logistics facilities.

26,000 lm with 187 W of power

The Philips CoreLine Value 52922900 provides a nominal luminous flux of 26,000 lm with a consumption of 187 W. Its efficacy reaches 139 lm/W, allowing a high amount of light with optimised power for high-bay installations.

This combination is especially suitable for replacing conventional industrial lighting systems or for equipping new installations where powerful, uniform and long-lasting general lighting is required.

Neutral white light of 4000 K

The 840 designation identifies a colour temperature of 4000 K and a colour rendering index above 80. This neutral white tone provides functional lighting for work areas, storage and circulation zones.

The chromatic consistency specified by Philips is SDCM ≤5, helping to maintain a uniform appearance when several high-bay luminaires are installed in the same space.

90° wide beam

The BY102P LED260S/840 PSU WB version incorporates Wide Beam optics, with a 90° beam angle. This distribution makes it possible to illuminate large surfaces from elevated points and helps achieve homogeneous coverage in halls and warehouses.

The CEN unified glare rating indicated by Philips is UGR 29. The actual glare level of an installation will also depend on the height, layout, number of luminaires and characteristics of the space.

IP65 protection

The high-bay lamp has an IP65 protection rating, so it is protected against dust ingress and water jets. This feature is especially suitable for industrial installations, warehouses and other spaces where a luminaire with greater environmental protection than a conventional indoor fitting is needed.

IK06 mechanical resistance

The IK06 classification provides resistance to mechanical impacts of up to 1 J. The luminaire is primarily designed for high-bay installation, where it is normally protected from direct contact and common knocks.

Die-cast aluminium housing

The body is made of ADC1 die-cast aluminium, alloy grade EN AC-47100, with a grey finish. Philips uses polycarbonate for the reflector, optics and optical cover, while the fixing elements are made of steel.

The matte finish of the optical cover helps distribute light evenly in professional applications.

On/Off driver included

The CoreLine Value comes with its electronic control gear fitted as standard. The PSU version uses a conventional On/Off driver and does not have a dimming interface.

This reference is not dimmable and also does not include constant light output functionality, so it is designed for conventional on/off installations.

Integrated LED light source

The LED light source is integrated into the luminaire and Philips indicates that it is not replaceable. The unit includes an LED module and the corresponding driver.

It also features Service Tag, which facilitates digital product identification and access to information associated with the luminaire.

L70 service life of 50,000 hours

Philips specifies L70 luminous maintenance at a median service life of 50,000 hours. This means that, under the reference conditions indicated by the manufacturer, the luminaire is designed to maintain at least 70% of its initial luminous flux when that period is reached.

The failure rate of the control gear at a median service life of 50,000 hours is 5%.

220-240 V supply

The high-bay lamp operates with an input voltage of 220 to 240 V and a mains frequency of 50 or 60 Hz. It has a power factor of 0.95 and a total harmonic distortion of 15%.

The inrush current indicated by Philips is 54 A for approximately 0.75 ms.

Up to 6 luminaires on B16 MCB

Philips specifies a maximum of 6 units on a 16 A type B miniature circuit breaker under its reference conditions.

The final circuit design must be carried out taking into account the actual installation conditions, conductor cross-sections and lengths, the protections used and the applicable regulations.

3-pole external connection

The luminaire incorporates a 3-pole connection unit and a 0.3 m cable with a 3-pole connector. This system makes electrical connection easier during installation and avoids having to handle the inside of the high-bay lamp directly.

Electrical protection class I

The Philips CoreLine Value BY102P belongs to Safety Class I. Therefore, the metal housing must be correctly connected to the protective earth conductor during installation.

358 mm diameter

The high-bay lamp has an overall diameter of 358 mm and a height of 99 mm. Its net weight is approximately 3 kg.

The circular and relatively compact format makes it suitable for use in high-bay installations with numerous light points.

Operation between -20 and +45 °C

Philips specifies an operating ambient temperature range from -20 to +45 °C. The indicated performance ambient temperature Tq is 35 °C.

The declared tolerance for both luminous flux and power consumption is ±10%.

Available accessories for the CoreLine Value range

Philips offers optional accessories to adapt the high-bay lamp to different mounting configurations and lighting requirements. These include brackets for alternative mounting and aluminium reflectors intended to modify beam control and glare.

These accessories are sold separately and should not be considered included with reference 52922900 unless expressly stated in the supply.

Applications of the Philips CoreLine Value 187 W

• Industrial halls.
• High-bay warehouses.
• Logistics centres.
• Manufacturing and production areas.
• Storage areas.
• Workshops and industrial spaces.
• High-bay commercial installations.
• Renovation of traditional industrial lighting systems.

Technical characteristics of the Philips CoreLine Value 52922900

• Brand: Philips.
• Manufacturer: Signify.
• Reference: 52922900.
• Model: BY102P LED260S/840 PSU WB.
• 12NC code: 911401646307.
• EAN: 8719514529229.
• Type: high-bay LED lamp.
• Technology: LED.
• Power: 187 W.
• Current luminous flux: 26,000 lm.
• Luminous efficacy: 139 lm/W.
• Colour temperature: 4000 K.
• Light colour: neutral white 840.
• Colour rendering index: CRI >80.
• Chromatic consistency: SDCM ≤5.
• Optics type: wide beam / Wide Beam.
• Beam angle: 90°.
• CEN UGR index: 29.
• Input voltage: 220-240 V.
• Frequency: 50/60 Hz.
• Power factor: 0.95.
• Total harmonic distortion: 15%.
• Inrush current: 54 A.
• Inrush time: 0.75 ms.
• Maximum on B16 MCB: 6 luminaires.
• Driver: included.
• Driver type: PSU On/Off.
• Dimmable: no.
• Control interface: no.
• Constant light output: no.
• Replaceable LED source: no.
• Service Tag: yes.
• Connection: 3-pole connection unit.
• Cable: 0.3 m with 3-pole connector.
• Electrical protection class: Class I.
• Protection rating: IP65.
• Impact resistance: IK06, 1 J.
• Housing material: ADC1 die-cast aluminium, EN AC-47100.
• Reflector material: polycarbonate.
• Optics material: polycarbonate.
• Optical cover material: polycarbonate.
• Optical finish: matte.
• Fixing material: steel.
• Housing colour: grey.
• Diameter: 358 mm.
• Height: 99 mm.
• Net weight: 3 kg.
• Operating ambient temperature: -20 to +45 °C.
• Performance temperature Tq: 35 °C.
• Median service life: 50,000 h.
• Luminous maintenance at 50,000 h: L70.
• Driver failure rate at 50,000 h: 5%.
• Glow-wire test: 650 °C for 30 s.
• CE marking: yes.
• Complies with EU RoHS: yes.
• Warranty indicated by Philips: 5 years.

Efficient lighting for high ceilings

The Philips CoreLine Value 52922900 combines a luminous flux of 26,000 lm with a power of 187 W and an efficacy of 139 lm/W. Its 90° optics allow light to be distributed over large surfaces, while the 4000 K and CRI above 80 provide suitable lighting for industrial and logistics activities.

The IP65 protection, die-cast aluminium housing, IK06 resistance and 50,000-hour L70 service life complete a solution especially aimed at professional lighting projects for halls, warehouses and production centres.

Important: the title provided indicates 25,500 lm, a value that appears in earlier official documentation. The current Philips/Signify documentation and product page now specify 26,000 lm for reference 52922900. The additional brackets and reflectors available for the range are optional accessories.
