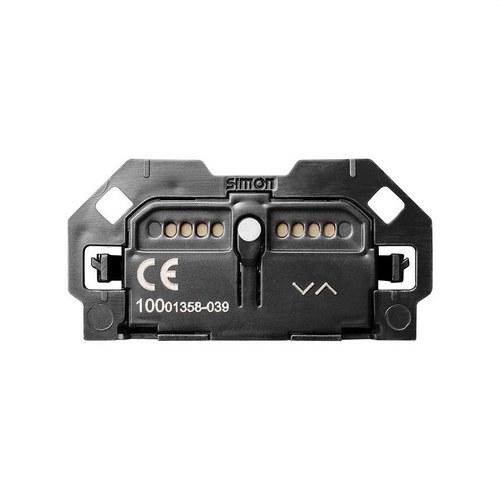

Simon iO Blind Switch 700 VA Simon 100

The Simon iO 700 VA Simon 100 Shutter Switch (ref. 10001358-039) is an advanced solution for motorized shutter control, designed to provide maximum comfort and functionality in homes and professional spaces. Integrated into the Simon 100 series, it combines minimalist design and efficient technology in a half-module format.

This mechanism eliminates the need for traditional manual systems, automating the raising and lowering of shutters to enhance daily convenience. It operates via push-button and features built-in electric interlocking, ensuring safe and controlled motor operation.

Requires a 127/230 V~ power supply and supports up to 700 VA. It is suitable for motors with power ratings between 25-350 VA / 50-700 VA, offering broad compatibility for residential installations.

Manufactured with metallic components and halogen-free thermoplastic insulation, it provides added safety in case of fire and ensures a long service life. Additionally, it withstands up to 95% relative humidity (non-condensing), ensuring stable operation in various environmental conditions.

Main technical features:

• Series: Simon 100
• Type of mechanism: shutter switch
• Format: half-module
• Maximum power: 700 VA
• Compatible motor power: 25-350 VA / 50-700 VA
• Power supply: 127/230 V~
• Operation: push-button
• Built-in electric interlocking
• Supported cable section: 1.5 to 2.5 mm²
• Protection rating: IP20
• Operating temperature: 0 – 50 ºC
• Storage temperature: -20 – 85 ºC
• Certification: CE

Installation:

• Installable in universal flush-mounting box
• Connection type: screw terminal
• Installation orientation: horizontal
• Suitable for flush mounting

The package includes the shutter switch and an instruction sheet for easy installation.

A convenient, safe, and stylish solution that enhances everyday life, providing automation and design in a single mechanism.
