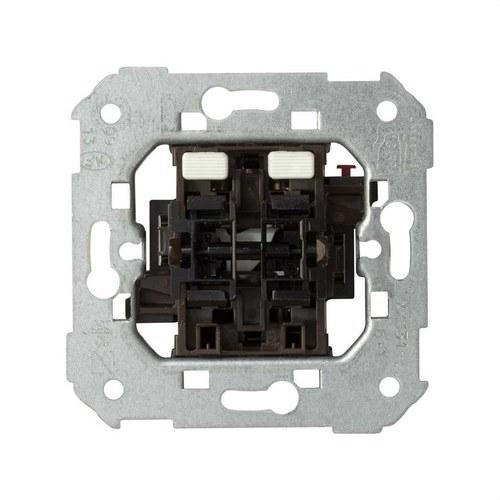

Set of 2 push buttons for blinds with interlocking system Simon 75

Group of 2 push buttons for blinds 10A 250 V with interlocking system. With the group of 2 push buttons for blind control from the Simon 75 collection, you will achieve the most suitable finishes for the space thanks to its wide range of color combinations, combined with the functionalities and technological innovation characteristic of Simon.

Made of metallic materials insulated with halogen-free thermoplastic, it provides safety to the room in case of fire, being able to withstand maximum temperatures from -25 to 50 °C. With an accepted cable section of 1.5 to 2.5 mm and a stripping of 11 mm, the Simon 75 group of 2 push buttons is suitable for flush or surface installation, expanding the aesthetic and functional possibilities of the specific space.

Additionally, it is compatible with a supply voltage of 250 Volts and 10 Amperes of intensity with modular amplitude (10:00 AM) and can be combined with the mechanisms of the Simon 77 range for a quick and convenient installation. Simon 75 has equipped this group of 2 push buttons with a safety interlock that prevents simultaneous operation.

Technical characteristics of the Simon 75 Mechanism with 2 push buttons for blinds:

• No signaling function
• 1 Element
• Built-in mounting and shipping note with lifting box
• Mechanism equipped with safety interlock
• Quick connection
• IP20 protection
• Made of metallic components with halogen-free thermoplastic insulation
• Suitable for surface and flush mounting
